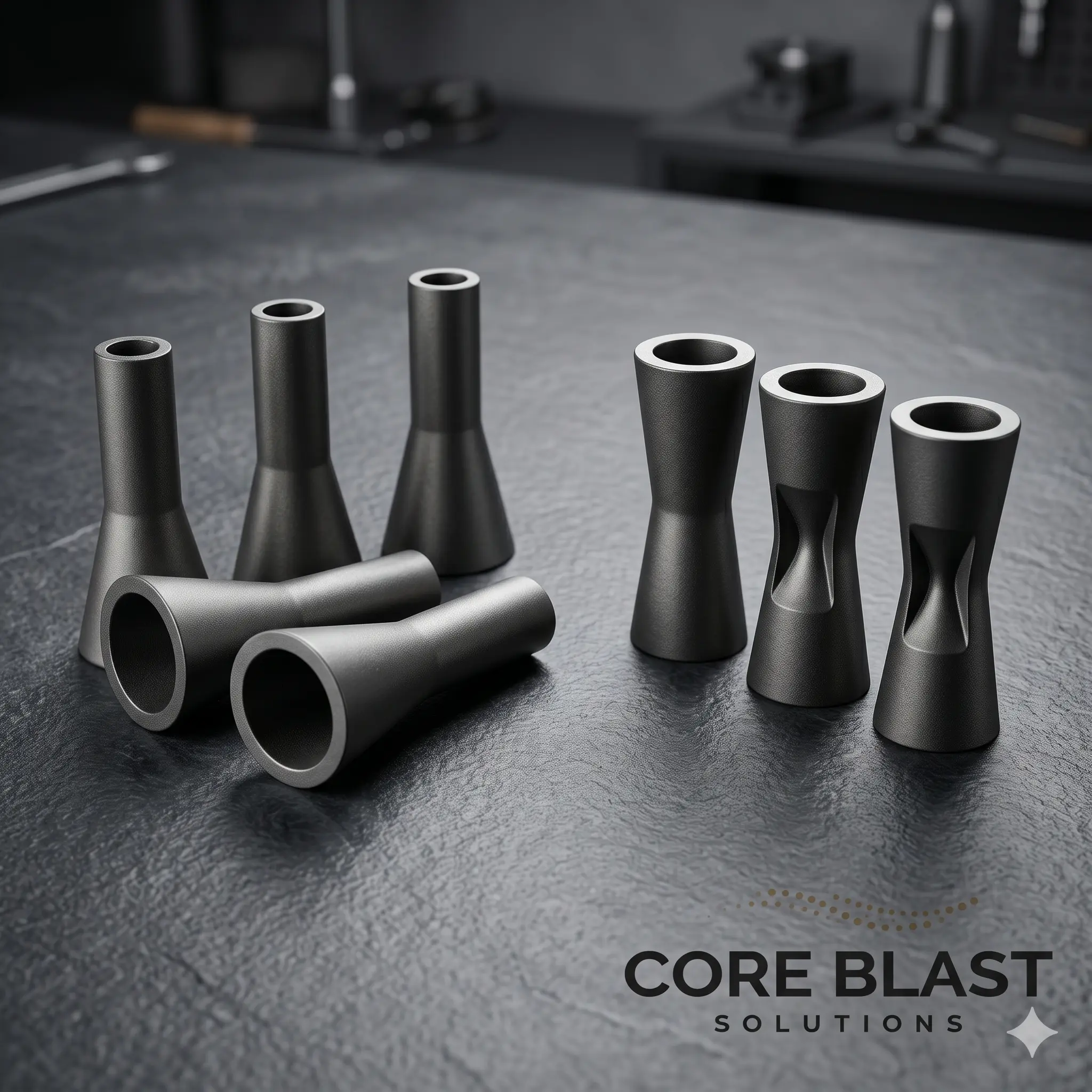

A collection of various industrial sand blasting nozzle models, including venturi, flared, and straight bore tungsten carbide nozzles by Core Blast Solutions.

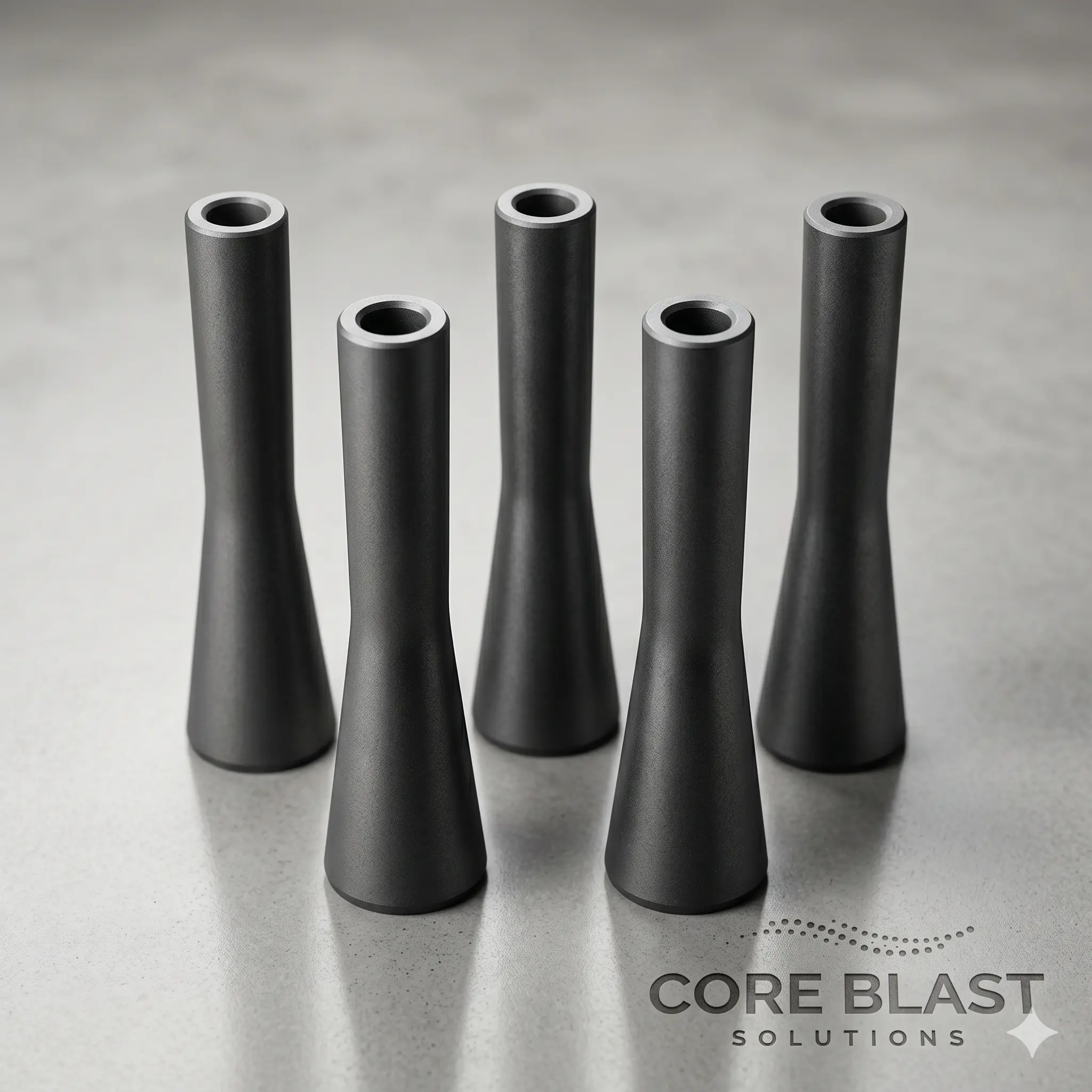

Five high-grade tungsten carbide sand blasting nozzles standing upright on a professional studio surface, watermarked with Core Blast Solutions branding.
A collection of various industrial sand blasting nozzle models, including venturi, flared, and straight bore tungsten carbide nozzles by Core Blast Solutions.

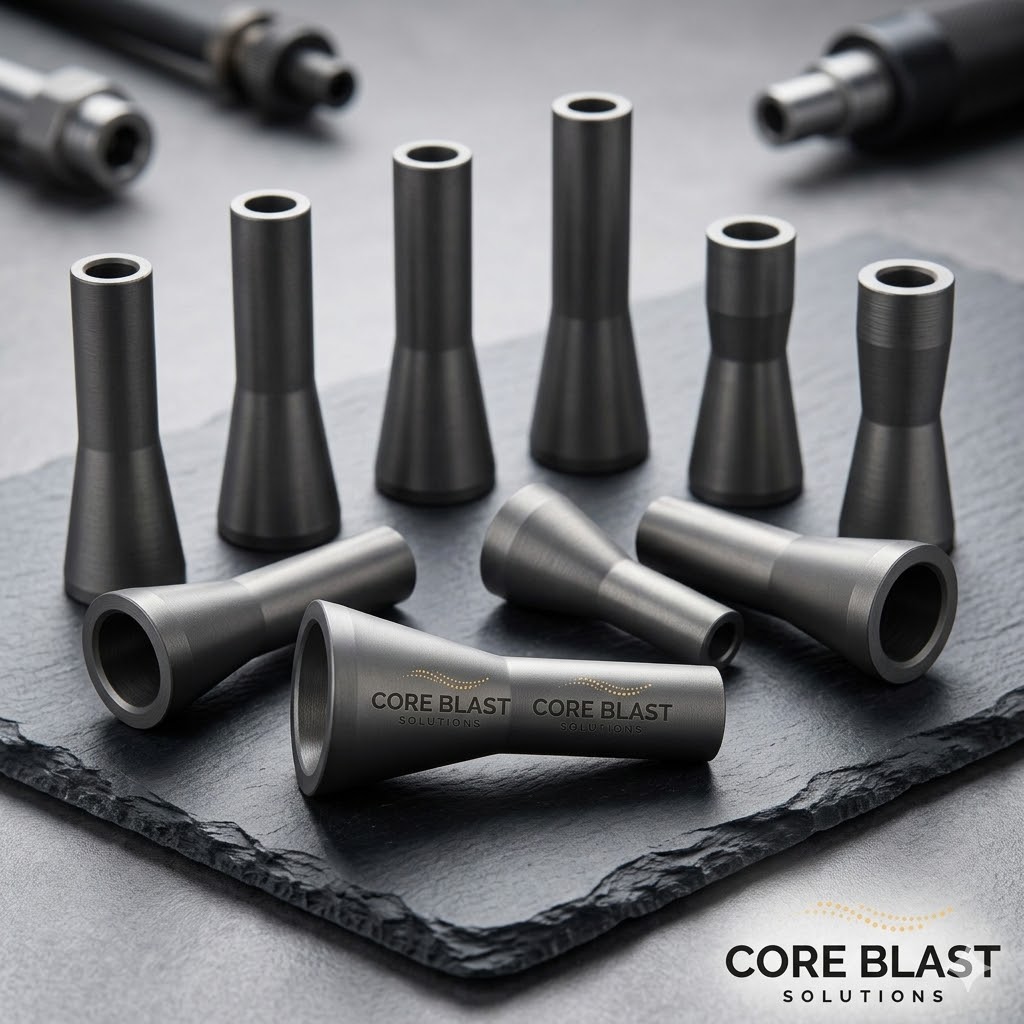

A premium selection of tungsten carbide sand blasting nozzles including straight bore and venturi models arranged on a dark slate surface, featuring custom Core Blast Solutions engraving and watermark.

Premium Tungsten Carbide (TC) Sand blasting Nozzles 2026

Original price was: ₹2,000.00.Current price is: ₹1,500.00.

Premium Tungsten Carbide Sand Blasting Nozzle

Core Blast Solutions supplies premium industrial sand blasting nozzle profiles starting at **₹1,500.00**, engineered specifically for high-impact structural descaling operations. Available in Long Series Venturi, Short Series Straight, and Y-Gun Suction configurations, our robust linings cover precise 6mm, 8mm, 10mm, and 12mm inner bore configurations. Sintered with an **88-92 HRA** cobalt-binder matrix, these heavy-duty spares provide excellent wear life when running heavy metallic abrasives under standard [IS 4606](https://www.bis.gov.in) and [SAE J827](https://www.sae.org) compliance frameworks.

Frequently Asked Questions (Lifecycle & Media Matching)
Q: Which media profiles pair best with these nozzles?
They excel with heavy high-impact streams like High-Carbon Steel Shots, Steel Grits, and Chilled Iron Grits.Q: What is the estimated operational wear life?
Under normal 90-110 PSI operating limits, our sintered cores deliver an expected lifepan of 300 to 800 blasting hours.Q: When should a worn core be replaced?
Inspect the alignment using a standard drill gage; replace the liner once internal bore expansion exceeds 1.5mm to safeguard clean system pressure.
Category:

Industrial Grade Spares

Premium Tungsten Carbide Sand Blasting Nozzle Lineup

Sintered Cemented Carbide (WC-Co) options engineered for extreme impact resistance and high-volume operations.

Wholesale B2B Pricing
₹1,500.00
Starting Price / Unit

Core Blast Solutions is a premier manufacturer and supplier of heavy-duty industrial sand blasting nozzle assemblies designed for aggressive structural surface preparation, high-velocity shot peening, and industrial descaling operations. Sintered under extreme pressure with a high-purity cobalt binder matrix, our premium Tungsten Carbide (WC) sand blasting nozzle variants deliver exceptional mechanical impact tolerance, mitigating catastrophic shattering when paired with heavy metallic media streams.

Engineered to fit standard industrial pressure pots and advanced blast cabinets, each sand blasting nozzle provides an exceptionally stable internal wear profile. This helps plant operators maintain constant air consumption metrics, prevent sudden system pressure drops, and achieve predictable anchor patterns over extended operational lifecycles. By choosing our robust sintered liners, facilities minimize maintenance intervals and maximize floor throughput.

✔

88-92 HRA Hardness Scale: High wear defense layer preventing micro-grooving during sharp abrasive trajectories.

✔

Pneumatic Stability Metrics: Engineered core designs to maintain clean pressure bounds and steady CFM profiles.

✔

B2B Fulfillment Pipelines: Direct commercial shipping networks tracking from our specialized New Delhi hub centers.

Technical Specifications & Product Variants

Our premium sand blasting nozzle inventory is categorized into three distinct mechanical profiles to match your specific blasting velocity, access restrictions, and machine setups.

Variant Classification Core Stream Dynamics Available Inner Bore Diameters Primary Industrial Application
Long Series Sand Blasting Nozzle Full Venturi Acceleration Stream 6.0 mm, 8.0 mm, 10.0 mm, 12.0 mm High-production open yard blasting, large steel structures, and hull descaling.
Short Series Sand Blasting Nozzle Straight Compact Jet Stream 6.0 mm, 8.0 mm, 10.0 mm, 12.0 mm Spot cleaning, weld joint preparation, blast room detailing, and tight clearances.
Y-Gun Sand Blasting Nozzle Assembly Dual-Inlet Induction/Suction Stream 6.0 mm, 8.0 mm, 10.0 mm, 12.0 mm Continuous suction blast cabinets, slurry/wet systems, and specialized cleaning.

Industrial Media Compatibility & Compliance Matrices

Every sand blasting nozzle lined with our sintered Tungsten Carbide is specifically optimized to withstand the rugged micro-deformations caused when running high-carbon metallic abrasives that strictly conform to the Bureau of Indian Standards IS 4606 Specifications and international SAE J827 Standards for high-carbon cast steel shot. This explicit media compatibility ensures our inner bore geometry experiences zero premature expansion, maintaining stable air consumption patterns across intensive operational lifecycles.

  • Primary Optimized Media Support: Formulated to pair with high-volume High-Carbon Steel Shots, hard Chilled Iron Grit, angular Crushed Steel Grit, and heavy-density Industrial Almandine Garnet grains.
  • On-Site Regulatory Conformity: Fully compliant with structural security standards, guaranteeing total integration within OSHA Abrasive Blasting Operational Regulations regarding physical lines static grounding and safety deadman valve structures across all companion installations.

Frequently Asked Questions (FAQ)

1. Which abrasive media are best suited for a Tungsten Carbide sand blasting nozzle?
+
A Tungsten Carbide sand blasting nozzle excels when running heavy metallic or high-impact mineral media profiles. They are perfectly optimized for High-Carbon Steel Shots, Steel Grits, Chilled Iron Grits, and Industrial Almandine Garnet, where extreme physical impact resistance prevents shattering.

2. What is the expected operating lifecycle of a Core Blast Solutions sand blasting nozzle?
+
Under standard industrial operating parameters (90 – 110 PSI), our premium sintered Tungsten Carbide sand blasting nozzle units provide a service life expectancy of 300 to 800 blasting hours, depending heavily on the velocity and cutting sharp edges of the media used.

3. What is the structural difference between Long Series and Short Series sand blasting nozzle options?
+
The Long Series sand blasting nozzle features an internal Venturi architecture that accelerates the abrasive particles up to 720 km/h for maximum kinetic impact over large surface areas. A Short Series sand blasting nozzle utilizes a straight bore designed for close-range spot cleaning, weld preparation, and operating in tight clearances where a long assembly cannot fit.

4. How does the Y-Gun sand blasting nozzle operate compared to standard direct pressure configurations?
+
The Y-Gun sand blasting nozzle variant utilizes a specialized dual-inlet geometry designed primarily for suction blast cabinets or slurry systems. One inlet directs high-velocity compressed air to create a powerful vacuum, drawing the abrasive media continuously through the secondary inlet without requiring a pressurized pop-up valve pressure pot.

5. What hardness rating do Core Blast Solutions sand blasting nozzle inserts carry?
+
Our industrial-grade sintered Tungsten Carbide liners inside each sand blasting nozzle carry a rigorous material hardness structural rating of 88 – 92 HRA (Rockwell Hardness A), providing an incredible threshold against continuous abrasive wear.

6. Can I run aggressive aluminum oxide or silicon carbide media through this sand blasting nozzle?
+
While a TC sand blasting nozzle handles metallic grits and garnet easily, highly aggressive angular minerals like Aluminum Oxide and Silicon Carbide will accelerate internal wear. For continuous use of those specific media, our upcoming Boron Carbide (BC) series is recommended.

7. How do I identify when my sand blasting nozzle needs a replacement?
+
A sand blasting nozzle must be inspected using a drill bit gaging protocol. If the inner bore diameter has expanded by more than 1.5 mm past its original size, or if the internal lining shows any structural cracks or deep grooving, it should be replaced immediately to prevent drop-offs in striking pressure.

8. Are these nozzles compatible with standard Indian and global blast machine configurations?
+
Yes. Our structural sizing and mounting collars are machined to easily interchange with standard industrial portable pressure blasters, blast rooms, and cabinet systems across the market, making it a universal drop-in replacement sand blasting nozzle.

9. What is the density of the core carbide material used in your sand blasting nozzle manufacturing process?
+
Core Blast Solutions utilizes high-density sintered carbide cores within every sand blasting nozzle, boasting a specific gravity of 14.5 to 15.0 g/cm³ for uniform structural composition and zero internal air pockets.

10. Does a higher cobalt binder percentage make a sand blasting nozzle last longer?
+
Not necessarily. A higher cobalt content increases structural elasticity and drop toughness (preventing cracks), but slightly reduces overall wear hardness. Our balance (5.5% – 6.5% Co) is optimized specifically for sand blasting nozzle wear dynamics.

11. How does inner bore expansion in a sand blasting nozzle affect air compressor requirements?
+
When the inner bore wears out and expands even slightly, the volume of compressed air required to maintain blasting pressure increases dramatically. If your compressor cannot match this increased CFM requirement, your overall blast pressure will drop, slowing down production speeds.

12. What is Core Blast Solutions’ standard policy regarding commercial B2B replacement support?
+
As a dedicated industrial supplier, Core Blast Solutions provides direct technical verification and replacements for structural or material manufacturing defects on any sand blasting nozzle order. Commercial logistics, sizing verification, and technical support are handled directly through our sales desks.
